LXLC-DN50-DN500 水平取り外し可能な水道メーター

概要

1. 水道パイプラインを流れる水の総量を記録します。下水や腐食性液体の測定には使用できません

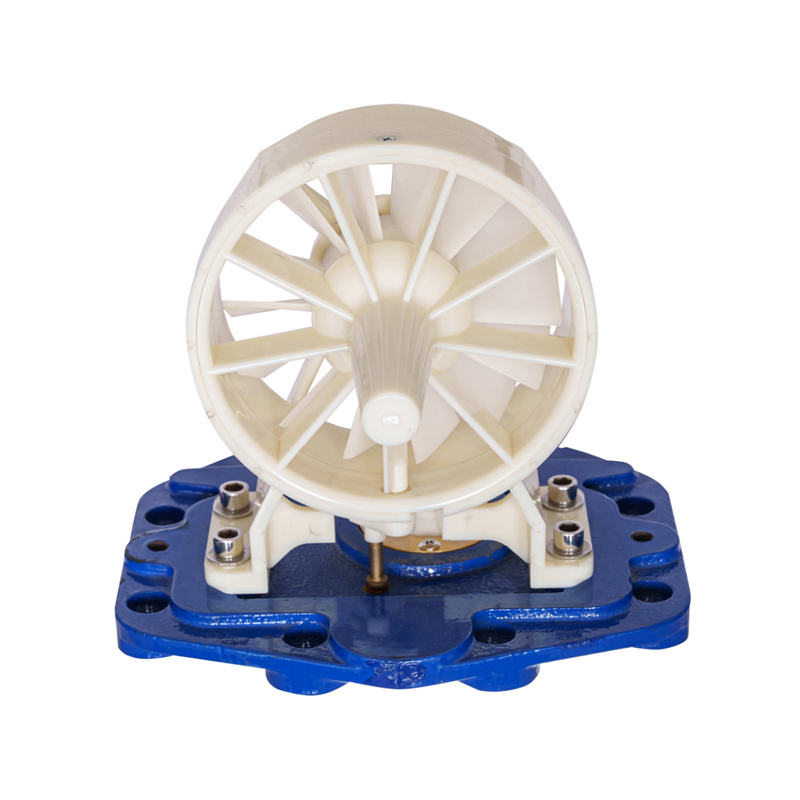

2. 本メーターは着脱式構造となっており、水道メーターを管路から取り外す必要がありません。修理や交換のためにムーブメントを引き出すことができます

3. 測定機構は汎用性が高く、交換部品が少なく、圧力損失が少なく長寿命です。

4.磁気または非磁気通信ポインタを予約し、さまざまなニーズに応じてさまざまなリモート送信デバイスを構成して、リモート検針機能を実現することができます

次世代 WPH 水平螺旋翼水道メーターは正確な水流監視に革命をもたらします

30-Apr-2026

Ningbo Water Cube Instrument Technology Co., Ltd.

WI 灌漑用水量計: コア機能と即時価値 WI 灌漑用水量計は、灌漑システムの水流を測定するために設計された精密装置で、農業および景観灌漑における正確な消費量の追跡、効率的な水管理、コスト管理を保証します。リアルタイムまたは累積的な水使用量データを提供することにより、農家や灌漑事業者が水の無駄を削減し、...

WI 灌漑用水量計ガイド: 動作原理、種類、スマート農業アプリケーション

23-Apr-2026

WPH水平スパイラルウイング水道メーターとは何ですか? の WPH 水平スパイラルウイング水道メーターパイプライン内の水の流れを測定するために使用される高精度の装置です。革新的なデザインで知られるこの水道メーターは、水平螺旋羽根機構を採用し、正確に水の使用量を測定します。 WPH モデルの背後にあるテクノロジー...

WPH 水平スパイラルウイング水道メーター: 精度、耐久性、効率性

16-Apr-2026

カスタム縦型水道メーターとは何ですか? カスタム垂直水道メーターは、垂直パイプラインの水の流れを測定するために使用される特殊な装置です。これらのメーターは、用途に応じて、サイズ、流量範囲、精度などの特定の要件を満たすように調整されています。カスタマイズ可能な機能を提供することで、産業、商業、住宅の幅広い用途に最適です。これらのメーター...

カスタム縦型水道メーターをカスタマイズして精度と効率を向上

09-Apr-2026

縦型水道メーターの紹介垂直型水道メーターは、住宅環境と工業環境の両方で水の消費量を測定するために使用される特殊な機器です。これらのメーターは垂直方向に配置されているため目立つため、水平方向のスペースが限られているスペースに最適です。水平型メーターとは異なり、垂直型メーターは、狭い場所や狭い場所でも正確な測定値を提供できるように設計さ...

水量測定の最適化: 最新の設備における垂直型水道メーターの役割

02-Apr-2026

業界知識

横型着脱式水道メーターの構造上のメリット

の 横型着脱式水道メーター は、メーターの動作をハウジングから独立してパイプラインから取り外すことができる取り外し可能な設計を特徴としており、操作の中断を大幅に削減します。この設計は、メンテナンス計画と運用効率に明らかな利点をもたらします。メーター全体を分解せずにムーブメントを引き出せるようにすることで、メンテナンス担当者は給水システムを停止することなく、内部機構にアクセスして検査、校正、または摩耗部品の交換を行うことができます。これは、流れを止めると工業プロセスや都市配水に混乱が生じる可能性がある大口径パイプラインで特に役立ちます。 Ningbo Water Cube Instrument Technology Co., Ltd. は、メンテナンス手順が合理化され、定期的な検査や修理に必要な人員と時間を短縮できるように、この取り外し可能なシステムを設計しました。この機構のモジュール性により、再挿入前にムーブメントを個別にテストできるため、再組み立て中のエラーのリスクが軽減され、メーターが稼働状態に戻った後も一貫した動作精度が保証されます。取り外し可能な設計により、メンテナンス担当者が高圧の流れにさらされることなく単独の動作で作業できるため、安全性が向上し、事故の可能性が軽減されます。この設計により、複数のメーターサイズにわたってムーブメントを標準化できるため、スペアパーツの管理も簡素化され、寧波水立方体計器技術有限公司は DN50 ～ DN500 メーターに一貫した交換コンポーネントを提供できるようになります。実際には、このアプローチにより在庫の複雑さが軽減され、費用対効果の高いメンテナンス戦略がサポートされます。全体として、水平取り外し可能水道メーターの取り外し可能な構造は、実用的なエンジニアリングと長期的な動作信頼性の統合を示しており、大口径の水道メーター用途に堅牢で使いやすいソリューションを提供するという寧波水立方体計器技術有限公司の取り組みを反映しています。

の Horizontal Detachable Water Meter is engineered with a modular construction, ensuring that key components, including the measuring mechanism, impellers, gears, and housing sections, can be independently removed, replaced, or upgraded. This modularity provides considerable operational and logistical advantages, reducing downtime and maintenance complexity. Ningbo Water Cube Instrument Technology Co., Ltd. emphasizes that modular design supports standardization of spare parts, which allows maintenance teams to keep a smaller inventory while addressing multiple meter sizes and configurations. Each component is manufactured to precise specifications, ensuring that parts can be interchanged without custom adaptation, which reduces the likelihood of errors during assembly and facilitates faster repair cycles. The modular architecture also supports scalability and upgrades; for example, advanced measurement modules or digital readout mechanisms can be integrated into existing meters without requiring replacement of the entire unit. This adaptability makes the Horizontal Detachable Water Meter suitable for evolving water management requirements. Furthermore, modular construction contributes to the overall structural integrity of the meter by allowing reinforcement in critical areas, such as bearing housings or flow channels, while keeping the total unit lightweight and manageable. This balance between durability and practicality ensures that installation and service procedures are efficient. Ningbo Water Cube Instrument Technology Co., Ltd. incorporates rigorous quality control in the production of each modular component, ensuring consistent performance and long service life across all DN50–DN500 meter sizes. The modular design not only improves operational reliability but also reduces long-term maintenance costs by simplifying access to individual parts and minimizing the risk of unnecessary replacements, positioning the Horizontal Detachable Water Meter as a practical and efficient solution for large-scale water metering projects.

の Horizontal Detachable Water Meter features a housing constructed from high-quality metals and polymers designed to withstand mechanical stress, water pressure, and long-term exposure to tap water environments. Ningbo Water Cube Instrument Technology Co., Ltd. selects materials based on strength, durability, and resistance to corrosion, ensuring that the meter maintains structural integrity under continuous operation. Stainless steel components and coated alloys are used for load-bearing sections, preventing deformation or leaks in high-pressure pipelines, while specialized polymers and elastomers are applied to moving parts and seals to resist wear and chemical interactions with water minerals. This combination of materials allows the meter to maintain performance over long service periods without frequent replacement of the housing or internal supports. The robust housing also provides mechanical stability during installation and operation, accommodating potential vibrations or pressure fluctuations within the pipeline. Ningbo Water Cube Instrument Technology Co., Ltd. emphasizes that the housing’s durability is paired with precision engineering to minimize any contribution to pressure loss, ensuring accurate measurement even in high-flow conditions. The corrosion-resistant structure supports maintenance efficiency by reducing the frequency of cleaning or surface treatment requirements, allowing the detachable movement to be accessed without concern for damage to the meter body. Long-term field performance of the Horizontal Detachable Water Meter demonstrates that robust housing and corrosion-resistant design contribute significantly to reducing operational disruptions, minimizing maintenance expenses, and extending service life, establishing it as a reliable option for large-diameter water metering in municipal and industrial systems managed by Ningbo Water Cube Instrument Technology Co., Ltd.

の Horizontal Detachable Water Meter is designed with an internal flow path optimized to reduce turbulence, minimize pressure loss, and improve measurement accuracy. The internal channels are carefully engineered to guide water through the meter smoothly, maintaining laminar flow conditions that enhance precision. Ningbo Water Cube Instrument Technology Co., Ltd. has applied computational fluid dynamics (CFD) modeling and extensive testing to ensure the flow path design reduces energy losses while supporting a broad range of flow rates typical in DN50–DN500 pipelines. The meter’s internal structure ensures that the impeller or piston operates consistently, even under variable flow conditions, minimizing error and providing reliable readings across low, medium, and high flow rates. The optimization also contributes to long-term durability because reduced turbulence decreases wear on moving components, such as gears and bearings, and prevents unnecessary stress on seals. By controlling the flow path, the meter also mitigates the effects of air bubbles, sediment, or minor particulates that could interfere with measurement in conventional meters. This level of hydraulic efficiency reduces the load on pumping systems, as minimal energy is lost in the meter, which is particularly advantageous for municipal and industrial networks where energy conservation is a priority. Ningbo Water Cube Instrument Technology Co., Ltd. integrates these design principles into every Horizontal Detachable Water Meter to ensure that us can rely on consistent, accurate readings and maintain system performance with minimal intervention. Overall, the optimized flow path is a structural feature that combines accuracy, energy efficiency, and reliability, reflecting the company’s focus on practical and long-lasting engineering solutions for large-diameter water systems.

の Horizontal Detachable Water Meter is equipped with a universal measuring mechanism designed for versatility and durability. Ningbo Water Cube Instrument Technology Co., Ltd. has engineered the mechanism to function across a wide range of pipeline diameters from DN50 to DN500, allowing us to standardize operations across multiple sites without the need for multiple meter models. The universal mechanism ensures precise measurement of water consumption regardless of varying flow rates, which is critical for municipal water distribution and industrial applications where consistency directly impacts billing accuracy and resource management. The mechanism is designed to reduce the number of spare parts required because its components are compatible across multiple meter sizes, simplifying maintenance and inventory management. Bearings, gears, and other moving parts are manufactured from high-performance alloys and treated to resist wear, friction, and water-borne contaminants, ensuring long-term operational reliability. The mechanism’s design also supports rapid maintenance or replacement due to its compatibility with the detachable structure of the meter, which allows us to remove and service the measuring unit independently of the housing. Ningbo Water Cube Instrument Technology Co., Ltd. integrates rigorous quality control procedures during the production and assembly of the measuring mechanism, ensuring consistency, accuracy, and durability in all units. The universal design reduces the likelihood of measurement errors caused by flow disturbances or mechanical wear, and it provides a future-proof platform for upgrades or integration with smart water metering technologies. By combining precision, adaptability, and ease of service, the universal measuring mechanism reinforces the structural advantages of the Horizontal Detachable Water Meter and supports long-term operational efficiency.

の Horizontal Detachable Water Meter utilizes advanced materials to enhance structural integrity, durability, and resistance to environmental factors. Ningbo Water Cube Instrument Technology Co., Ltd. selects high-performance metals, polymers, and elastomers to construct the housing, internal components, and seals, ensuring the meter withstands pressure, vibration, and chemical interactions typical of tap water pipelines. Metals such as stainless steel or coated alloys are used for load-bearing elements and flanges, providing structural strength and resistance to deformation under high-pressure conditions. High-quality polymers are applied to moving components like impellers, gears, and pistons to reduce friction, minimize wear, and maintain accuracy over extended periods. Seals and gaskets are manufactured from resilient elastomers capable of maintaining their properties under continuous exposure to water, temperature fluctuations, and mechanical movement. The combination of materials also contributes to corrosion resistance, which reduces the frequency of maintenance interventions and ensures long-term stability of the meter. By integrating advanced materials, Ningbo Water Cube Instrument Technology Co., Ltd. ensures that the Horizontal Detachable Water Meter maintains consistent measurement accuracy, low pressure loss, and reliable performance in a variety of operating conditions. This approach also supports environmental sustainability because the materials are chosen for durability, reducing the need for replacements and minimizing waste. Advanced material integration reinforces the meter’s detachable structure, ensuring that both the housing and the removable movement maintain operational integrity during installation, service, or repair. This structural advantage not only increases the service life of the meter but also provides confidence that us can rely on the meter for critical water monitoring in municipal and industrial applications.

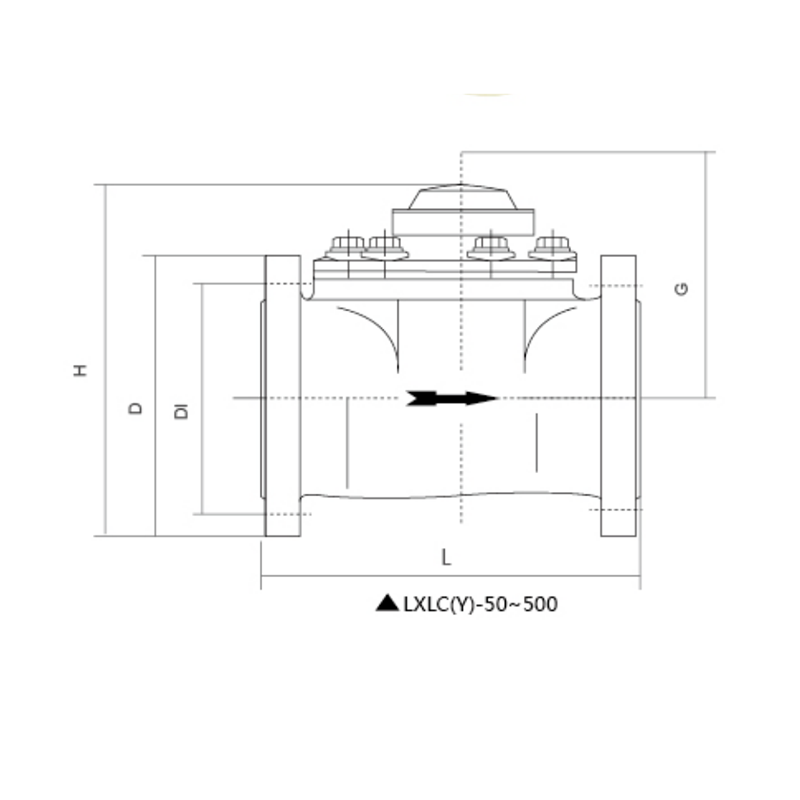

モデル	キャリバー DN	ロング L	背が高い H	背が高い G	接続方法 D			重量
モデル	キャリバー DN	mm			フランジ外径 Dmm	ボルト穴中心円直径 D1mm	連結ボルトの本数	kg
LXLC(Y)-50/50F	50	200	256/245(F)	400	165	125	4×M16	12.0
LXLC(Y)-65/65F	65	200	266/255(F)	400	185	145	4×M16	13.5
LXLC(Y)-80/80F	80	225	276/265(F)	400	200	160	8×M16	14.5
LXLC(Y)-100/100F	100	250	286/275(F)	400	220	180	8×M16	15.5
LXLC(Y)-125/125F	125	250	301/290(F)	400	250	210	8×M16	24.5
LXLC(Y)-150/150F	150	300	345/335(F)	500	285	240	8×M20	32.0
LXLC(Y)-200/200F	200	350	373/365(F)	500	340	295	8×M20	41.0
LXLC(Y)-250/250F	250	450	493/485(F)	710	395	350	12×M20	83.0
LXLC(Y)-300/300F	300	500	516/505(F)	730	445	400	12×M20	99.0
LXLC(Y)-400/400F	400	600	631/620(F)	830	565	515	16×M24	163.0
LXLC(Y)-500/500F	500	800	739/730(F)	930	670	620	20×M24	270.0
LXLC(Y)/R-50	50	200	256	400	165	125	4×M16	12.0
LXLC(Y)/R-65	65	200	266	400	185	145	4×M16	13.5
LXLC(Y)/R-80	80	225	276	400	200	160	8×M16	14.5
LXLC(Y)/R-100	100	250	286	400	220	180	8×M16	15.5
LXLC(Y)/R-125	125	250	301	400	250	210	8×M16	24.5
LXLC(Y)/R-150	150	300	345	500	285	240	8×M20	32.0
LXLC(Y)/R-200	200	350	373	500	340	295	8×M20	41.0

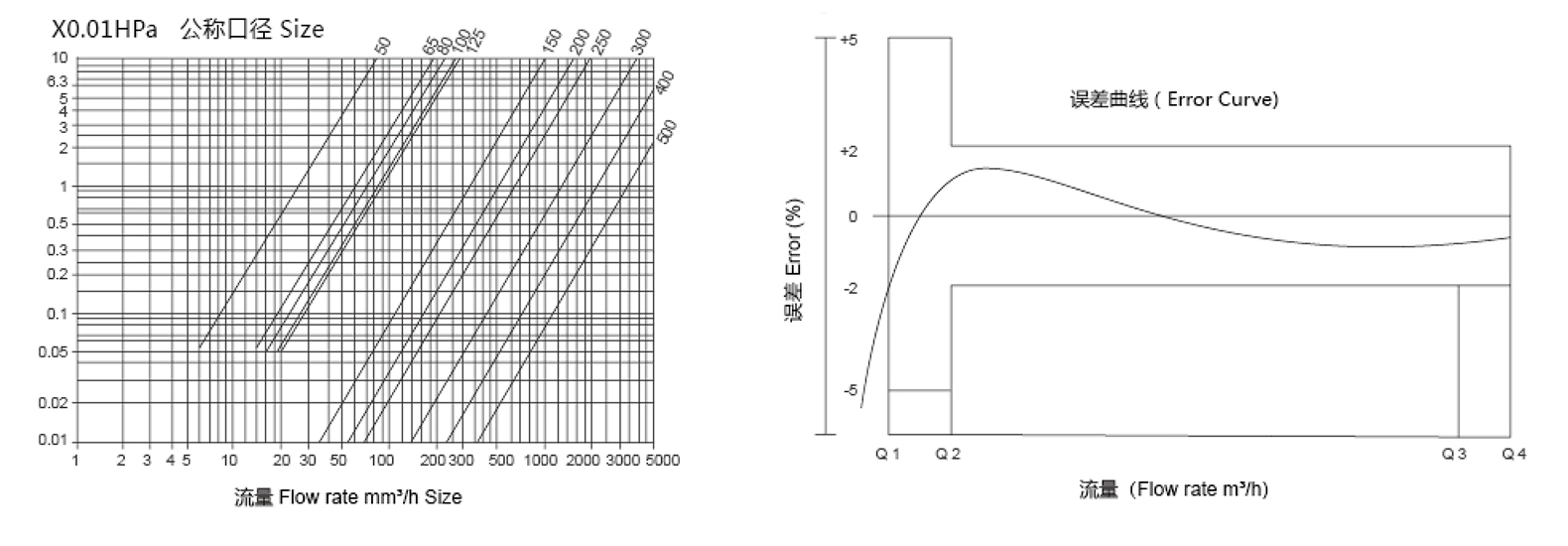

キャリバー DN	Q 3 /Q 1	過負荷流量 Q 4	一般的なトラフィック Q	境界の流れ Q	最小流量 Q	最小読み取り値分	最大読み取り値分
キャリバー DN	Q 3 /Q 1	m3/h		L/h		㎥
50	100	50	40	640.0	400.0	0.001	999999
	80			800.0	500.0
	50			1280.0	800.0
65	100	78.75	63	1008.0	630.0
	80			1260.0	787.5
	50			2016.0	1260.0
80	100	78.75	63	1008.0	630.0
	80			1260.0	787.5
	50			2016.0	1260.0
100	100	125	100	1600.0	1000.0
	80			2000.0	1250.0
	50			3200.0	2000.0
125	100	200	160	2560.0	1600.0
	80			3200.0	2000.0
	50			5120.0	3200.0
150	100	312.5	250	4000.0	2500.0	0.01	9999999
	80			5000.0	3125.0
	50			8000.0	5000.0
200	100	500	400	6400.0	4000.0
	80			8000.0	5000.0
	50			12800.0	8000.0
250	100	787.5	630	10080.0	6300.0	0.1	99 999999
	80			12600.0	7875.0
	50			20160.0	12600.0
300	100	1250		16000.0	10000.0
	80		1000	20000.0	12500.0
	50			32000.0	20000.0
400	100	2000	1600	25600.0	16000.0
	80			32000.0	20000.0
	50			51200.0	32000.0
500	100	3125	2500	40000.0	25000.0
	80			50000.0	31250.0
	50			80000.0	50000.0

プロジェクト内容	パラメータ
温度定格	T30/90
圧力定格	MAP16
流れ場の感度レベル	U0/D0
圧力損失レベル	△pl6
精度等級	レベル2
